Thursday, April 18, 2019

Open data leads to competition

When evaluating proposed mergers and breakups, control of data should be considered along with market impact.

In a previous post, I spoke of Amazon's use of customer and market data in restraint of trade, but they are not alone. For example, leaked internal documents show that plans to sell access to user data were discussed for years and received support from Facebook’s most senior executives. For example, Facebook gave Amazon extended access to user data because Amazon was spending money on advertising and partnered with them on the launch of the Fire smartphone. In another case, Facebook discussed cutting off access to user data for a messaging app that had grown too popular and was viewed as a competitor.

As former FCC Chairman Tom Wheeler points out in a recent post, proprietary data is a source of market control and he cites two examples where opening data has led to competition. In the US, a law mandating open access to video content enabled satellite companies to compete with cable companies and in the UK, open access to customer banking data led about 200 organizations to offer new services in its first year.

Wheeler's position is elaborated in Unlocking Digital Competition, a report from the Digital Competition Expert Panel convened by the British Treasury Department. Their data-related recommended actions are:
  • Establishing data mobility and open standards between services: overcoming network effects which cause markets to tip by requiring systems to ‘talk’ to each other using open, standardised formats. This will mean consumers can port their data between networks, interact with users on other, similar networks, and smaller firms can plug their services into those of bigger ones. New business opportunities will open up that use, manage, and combine data made available. Consumers, in turn, will have new choices of digital services, with switching made much easier.
  • Securing access to non-personal and anonymised data: tackling the data barrier to entry for smaller and newer firms, while protecting privacy. The power of bulk data driving economies of scale and scope is a key reason new firms struggle to compete and bring innovative services to consumers. Overcoming this barrier will allow the digital economy to remain dynamic.
These are only two of the 20 recommended actions in the 140-page report. Those actions are grouped under six strategic recommendations for the government:
  • Sustain and promote effective competition in digital markets, by establishing a pro-competition digital markets unit, tasked with securing competition, innovation, and beneficial outcomes for consumers and businesses.
  • Take more frequent and firmer action to challenge mergers that could be detrimental to consumer welfare through reducing future levels of innovation and competition, supported by changes to legislation where necessary.
  • Update and effectively use tools against anti-competitive conduct to help them play their important role in protecting and promoting competition in the digital economy.
  • Continue to monitor how the use of machine learning algorithms and artificial intelligence evolves to ensure it does not lead to an anti-competitive activity or consumer detriment, in particular to vulnerable consumers.
  • Conduct a market study into the digital advertising market encompassing the entire value chain, using its investigatory powers to examine whether competition is working effectively and whether consumer harms are arising.
  • Engage internationally on the recommendations it chooses to adopt from this review, encouraging closer cross-border co-operation between competition authorities in sharing best practice and developing a common approach to issues across international digital markets.
The two open-data actions mentioned above fall under the first strategic recommendation of promoting competition, but control of data is involved in the others as well. When Amazon acquired Zappos and Whole Foods, they gained access to data on relatively affluent shoppers. Facebook's acquisition of Instagram and WhatsApp and Google's acquisition of Waze also yielded data in addition to eliminating competition. The machine learning recommendation involves training data. When evaluating proposed mergers and breakups, control of data should be considered along with market impact.

The last strategic recommendation -- international engagement -- recognizes the global nature of the Intenet. (Note that the Digital Competition Expert Panel was chaired by an American). Nations like China and the US have different goals with respect to competition, but democratic, capitalist nations should strive to adopt compatible institutions and policies. In the era of Brexit and MAGA, we need to work with other nations -- I'd rather end up with two Internets than fifty.

Thursday, April 11, 2019

Amazon's orbiting infrastructure

The invisible eye of the marketplace
I have been following satellite Internet service since the 1990s, but I was surprised when I learned last week that Amazon had filed an application for a 3,236-satellite constellation of low-earth orbit Internet service satellites -- Project Kuiper.

I shouldn't have been surprised -- Amazon was an infrastructure company from the start.

In his first post-IPO letter to shareholders in 1997, Jeff Bezos pointed out that their distribution center capacity grew from 50,000 to 285,000 square feet and said their goal remained "to continue to solidify and extend our brand and customer base. This requires sustained investment in systems and infrastructure to support outstanding customer convenience, selection, and service while we grow."

Today Amazon infrastructure is used internally and is offered as a service to others. Their distribution centers are now highly automated and they distribute a lot more than books. Amazon also offers Web, cloud storage, shipping and delivery services, credit cards, a voice application platform, an affiliate retailer program, satellite ground stations, automated retail stores, pickup locations, Whole Foods stores and other things I am probably overlooking. Bezos personally owns the Washington Post and the Blue Origin aerospace manufacturing and spaceflight services company. (Blue Origin has a contract to launch satellites for Telesat, a Project Kuiper competitor).

Bezos' preparation for Project Kuiper was hiding in plain sight with the reference to road building in the Blue Origen mission statement: "We're committed to building a road to space so our children can build the future" and it should have become more clear when Amason added fully-managed satellite ground station service to its Web Service offering. Amazon says Project Kuiper "will provide low-latency, high-speed broadband connectivity to unserved and underserved communities around the world.” That may be true, but it is the tip of the iceberg -- like saying Amazon saying in 1994 that they would deliver low-cost books to homes.

During the industrial era, infrastructure companies like railroads and oil and steel companies grew as quickly as possible in order to achieve economies of scale and create barriers to entry and profit from usage fees and sales. In the information era, data is as important as fees and sales. Esther Dyson pointred that out in 1995, the year after Jeff Bezos founded Amazon, and it was reaffirmed recently when Softbank founder and CEO Masayoshi Son justified his billion dollar investment in OneWeb's satellite constellation, saying "whoever gets the most data wins."

Stacy Mitchel has researched the ways Amazon has applied Dyson's insight. Since many people go straight to Amazon rather than use a search engine when shopping for products, Amazon learns what people want, what they eventually buy and don't buy and how much they pay. They use that market knowledge to decide what to feature in search results, which products to brand or manufacture themselves, which companies to buy, etc. Their size and information facilitate optimal and, in some cases predatory, pricing. Mitchel cites book sales and their zapping of Zappos as examples of the latter and also shows ways in which Amazon has used government subsidy. (Imagine the price war between Jeff Bezos and Elon Musk).

Amazon harvests data from all of their infrastructure offerings. For example, Netflix uses AWS. They even learned a lot about local demographics, real estate prices, labor costs, etc. when they invited cities to apply to be the site of Amazon's future headquarters.

But, what's wrong with this? Amazon is efficient and has kept prices low and their customer service is terrific.

That sort of reasoning has dominated US anti-trust enforcement in recent years, but it is partial and short-sighted. Prices that are low enough to maintain rapid growth suit Amazon well now, but in the long run, competition and transparency fuel low prices, efficiency and the broad distribution of wealth and income.

Industrial era concentration of power resulted in anti-trust action in the early 20th Century, but those were simpler times. In the letter to shareholders mentioned above, Bezos also stated that "there are significant opportunities to better serve our customers overseas." How can we achieve competition between global Internet service providers like Amazon, SpaceX, OneWeb and Telesat that are outside the jurisdiction of a single nation?

There is no simple answer to that question. We can't put the genie back in the lamp, but we have seen some success with government operation of neutral, free or wholesale infrastructures like roads, sidewalks and municipal backbone networks and Google has had some success with fair, wholesale networking in Africa. Europe is beginning to look for ways to encourage competition, transparency, and privacy.

Update 4/12/2019

In yesterday's 2018 letter to shareholders, Jeff Bezos reported that 58% of Amazon.com retail sales are made by independent third-party sellers, emphasizing that they "helped independent sellers compete against our first-party business by investing in and offering them the very best selling tools we could imagine and build," i. e., infrastructure. He singles out Fulfillment by Amazon, the Prime membership program, Amazon Web Services, database tools, SageMaker for machine learning and Alexa, which is built into 150 different products.

He also points out that Amazon remains a small player -- "low single-digit percentage" -- in global retail largely because nearly 90% of retail remains offline, in brick and mortar stores. But they are working on infrastructure for them -- Amazon Go stores.

He has convinced me -- forget retail, Amazon is an infrastructure company.

Amazon's infrastructure yields revenue and data, and that data can be used in restraint of trade, but Amazon is not all bad. As Bezos points out, they create jobs and valuable services as do others who use their infrastructure. Elizabeth Warren and others are calling for changes to US tax and anti-trust laws, but we need to be careful not to throw out the baby with the bathwater. (Full disclosure -- I loved Mrs. Maisel, the Big Sick, and many more and bought a terrific pasta cooker at Amazon.com yesterday).

The issue is further complicated by the fact that this is not a US issue, it is global. Amazon (and others) are Global infrastructure companies and China is a global infrastructure country.

Wednesday, April 03, 2019

Are inter-satellite laser links a bug or a feature of ISP constellations?

I hope each of these companies has someone in charge of thinking about what might go wrong with a single, satellite-based network providing fast, low-cost links anywhere on the global Internet.

Inter-satellite laser links (source)
OneWeb, SpaceX, Telesat and Leosat all aspire to be global Internet service providers using constellations of low-Earth orbit (LEO) satellites. Their success will require still-unproven technological innovation, but there are also political stumbling blocks.

OneWeb has already encountered significant political problems in Russia. Russia launched OneWeb's first test satellites and has a billion dollar contract for 20 additional launches, but Russian security officials are lobbying against OneWeb's offering service on the grounds that it might facilitate spying. When Anatoly Zak, an expert on the Soviet space program, investigated that claim, he concluded that "With the launch of the OneWeb constellation, the Russian rocket industry stands to earn millions, but the Kremlin is terrified at the prospect of unhindered access to the Internet by its citizens."

As far as I know, OneWeb is still planning to offer service in Russia, but they have had to make financial and technical concessions. They agreed to become a minority partner in the company that will market their service in Russia and, significantly, they agreed to drop the inter-satellite laser links (ISLLs) from their constellation and pass all Russian traffic through ground stations in Russia.

Dropping ISLLs, which are still unproven for this application, will simplify the design of their satellites and save development time and cost. It will also reduce satellite complexity, size, and weight and save power, but there will be costs.

OneWeb throughput simulation (source)
They will need more ground stations if they offer global service without ISSLLs. OneWeb founder Greg Wyler says they will have more than 40 such gateways, each capable of “seeing” satellites up to 4,000 kilometers away. A team of MIT researchers ran a simulation of a 720-satellite OnWeb constellation and they estimate that 71 ground stations would be required to reach maximum throughput. (Anatoly Zak estimates that four to six gateways will be in Russia and speculates that hackers may be able to illegally connect to satellites in neighboring countries). Dropping ISLLs will also add latency, especially on long-distance links.

What about the other would-be global LEO projects?

Telesat will retain ISSLs, but accommodate countries on a country-by-country basis. Erwin Hudson, vice president of Telesat LEO, says we "have the flexibility in our network control system to route traffic all kinds of different ways. There are no rules that traffic has to go over the inter-satellite links."

SpaceX is going forward with ISSLs, and they are also aware of the political problems. During a recruiting talk at the opening of their Seattle satellite-design office four years ago, CEO Elon Musk said "I'm hopeful that we can structure agreements with various countries to allow communication but it is a country-by-country basis ... it's not gonna take longer than five years to do that and not all countries will agree at first ... that's fine."

Leosat is also prepared to build gateways to make accommodations. For example, CEO Mark Rigolle says they would be willing to build a gateway in China to accommodate the government; however, that would be inconsistent with their primary marketing focus of providing low-latency, secure, point-to-point links globally.

These companies are all thinking about concessions they need to make in order to operate in countries that want to surveil citizens and control their access to information, but what about guarding against aggression? I hope each of these companies has someone in charge of thinking about what might go wrong with a single, satellite-based network providing fast, low-cost links anywhere on the global Internet.

During the recruiting talk mentioned above, Elon Musk said "[the constellation design] is a really difficult technical problem to solve so that's why we need the smartest engineering talent around the world to solve the problem and, you know, to also make sure we don't create Skynet." At that time, I asked "Would global Internet service providers require unique regulation and, if so, what should it be and who has the power to do it?" and said I was "less worried about Musk creating SkyNet than creating Comcast on Steroids," but I was naive.

Follow these links for background on the four projects: SpaceX, OneWeb, Telesat and Leosat.

Tuesday, March 19, 2019

SpaceX's Starlink Internet service will target end users on day one

It sounds like SpaceX is planning on offering broadband service to end users who will order the service online and set up their own ground stations.

Internet users per 100 inhabitants (source)
Starting with Teledesic in 1990, would-be Low-Earth Orbit (LEO) satellite constellations have been justified to the FCC, other regulators, and the public as a means of closing the digital divide. Teledesic's goal was "providing affordable access to advanced network connections to all those parts of the world that will never get such advanced capabilities through existing technologies." Today's low-Earth Orbit (LEO) satellite companies make the same claim, but Telesat, OneWeb and Leosat seem to be targeting commercial markets first.

As far as I know, Telesat is the first LEO provider to sign up a customer and that customer is Omniaccess. Headquartered in the “yachting capital of the Mediterranean,” Palma de Mallorca, OmniAccess provides broadband and IPTV service to over 350 vessels -- superyachts, boutique cruise lines, and prestigious research & exploration organizations. The Telesat agreement provides OmniAccess with limited exclusivity to serve the "superyacht" market -- in other words, they will be connecting the yachts of Russian oligarchs.

In 2003, OneWeb founder Greg Wyler worked on 3G mobile and fiber access to homes and schools in Rwanda. In 2007, he founded O3b Networks, a middle-Earth orbit satellite Internet service provider to connect the "other three billion" unconnected people. OneWeb was founded in 2012 with goals of 1 billion subscribers by 2025 and the elimination of the global digital divide by 2027. Their first marketing-oriented move was to partner with Airbus, Delta, Sprint, and Airtel, establishing the Strategic Air Alliance to develop standards to enable them to provide passengers seamless, in-cabin connectivity. It looks like their first customers will be airline passengers, ships at sea and mobile phone companies.

Leosat has focused on enterprise and government customers from the start.

Elon Musk followed a similar strategy in bootstrapping his electric car company, Tesla. He started with expensive, high-end vehicles and followed several years later with the lower-priced Models 3 and Y, but it looks like the SpaceX Starlink Internet service will focus on end users from the start.

SpaceX sister company, SpaceX Services, filed an FCC application for "a blanket license authorizing operation of up to 1,000,000 earth stations that end-user customers will utilize to communicate with SpaceX’s LEO constellation." Those end users will be individuals, libraries, schools, etc. "throughout the contiguous United States, Alaska, Hawaii, Puerto Rico, and the U.S. Virgin Islands." They assert that this license will "enable SpaceX to bring high-speed, reliable, and affordable broadband service to consumers in the United States and around the world, including areas underserved or currently unserved by existing networks.” (Note that these initial satellites would have the capacity to serve Cuba and other Caribbean nations).

Their user terminals will "employ advanced phased-array beam-forming and digital processing technologies to make highly efficient use of Ku-band spectrum resources by supporting highly directive steered antenna beams that track the system’s LEO satellites." Since SpaceX plans to begin launching operational satellites in 2019 and they are already conducting successful satellite-ground communication tests, they must be confident that they can mass produce such antennas at a low cost. (Note that a former SpaceX executive has recently joined Mynaric, a German laser communications startup focused on satellite and airborne platforms. Perhaps SpaceX and Mynaric will collaborate on the antennas).

https://spacenews.com/former-spacex-starlink-exec-joins-german-lasercomm-startup/

Ground stations that can track fast-moving satellites, switching seamlessly from one to another when they go out of view, will be easy for end-users to install. It sounds like SpaceX is planning on offering broadband service to end users who will order the service online and set up their own ground stations.

Click for more on the SpaceX, OneWeb, Telesat and Leosat LEO Internet-service projects.

Saturday, February 23, 2019

Rethinking technology policy - the 50th anniversaries of the moon landing and first ARPANET message

The anniversaries of these milestones remind us of the economic and social returns we have seen from ambitious Federal research, development and procurement programs. Why isn't this a Sputnik moment for the United States?

Log entry for the first ARPANET
message (Source)
On July 20, 1969, Neil Armstrong stepped out of the Apollo 11 lunar lander and set foot on the moon. On October 29th, Charley Kline, an ARPANET programmer at UCLA, attempted to log in to a host at Stanford Research Institute (SRI), but the system crashed after he had typed LO. After a bit of debugging, he succeeded in typing LOGIN and the rest is history.

These events were milestones in ongoing, federally-funded research and development efforts -- the manned spaceflight program and the development of digital telecommunication networks from Morse's telegraph to early electronic digital computers and telemetry experiments, the SAGE early-warning system and eventually the ARPANET and the Internet. (The previous link is to a text version of the history article. Contact me if you would like a pdf of the article as it appeared in the Communications of the ACM).

The anniversaries of these milestones remind us of the economic and social returns we have seen from Federal research, development and procurement programs. When President Franklin Roosevelt was inaugurated in 1933, he enacted many ambitious government programs aimed at ending the great depression -- a "new deal." He initiated programs like Social Security and infrastructure projects like rural electrification. Confidence in the Federal Government being able to pull off large, successful programs continued through World War II, the Berlin Airlift and Marshall Plan, the Interstate highway system and the space program.

Early ARPANET sketch, showing
UCLA and SRI nodes (Source)
President Kennedy kicked off Apollo program in 1961, saying he believed "that this nation should commit itself to achieving the goal, before this decade is out, of landing a man on the moon and returning him safely to Earth." But pendulums swing and, in a 1986 press conference, we heard President Reagan say “The nine most terrifying words in the English language are: I’m from the government and I’m here to help you.” Today we are discussing a "green new deal" -- is the pendulum about to swing back?

Update 3/14/2019

Former National Security Advisor Tom Donilon addressed technology policy in an terrific interview. The following is a paraphrase of his reflection on the emergence of collaboration between government, universities and private companies that was born when the Russians launched their Sputnik satellite:
I don't think we're having anywhere near the conversation we need to have about the missing piece of China policy which is: what is the United States going to do? Why isn't this a Sputnik moment for the United States? In the late 1950s, when the Soviets launched the Sputnik satellite, the United States undertook an enormous national effort that changed the way we taught math and established NASA and the Golden Triangle of technological and innovation development between the government and research universities and private companies.

We face a similar challenge at this point in terms of technology competition with China. That is something I think we need to be talking about and the discussion includes immigration policy, infrastructure investment, education investment and [consideration of the] impact of technology, particularly artificial intelligence, robotics and automation on labor markets. Populism is not at its peak right now -- we need a really serious discussion about how we are going to manage the future of work in the face of technology.
This comment was made at around 33:15 of the interview:


Friday, February 15, 2019

Google baloons and Telesat satellites

Telesat will use Google's network operating system. Will Google get access to data? A global backbone?

Loon balloons float at an altitude of around 20 km -- above
birds and the weather. They navigate by moving up or
down to catch wind currents moving in different directions.
Telesat is making progress. Within the last month, they announced a launch contract with Blue Origin, a successful antenna test with Ball Aerospace and completion of system requirements reviews, but perhaps more interesting is an agreement to use the software defined network (SDN) platform Google has developed for their Project Loon.

Google has been interested in connectivity for underserved areas for many years, and have investigated and invested in non-terrestrial solutions using satellites, blimps, drones and balloons. Project Loon uses constellations of balloons in the stratosphere. They began working on it in 2011, provided emergency connectivity in Peru in 2016 and Puerto Rico in 2017 and are slated to begin commercial deployment in Kenya later this year.

Like LEO satellites, Loon balloons are in constant motion relative to the Earth and each other and the Loon SDN "schedules, predicts, controls and optimizes the wireless topology, radio resources, and routing of packets across the ground and aerospace segments of non-geostationary networks." The satellites and balloons are at different altitudes and move at different speeds, but the network characteristics are similar and Google will adapt their SDN for Telesat's satellite constellation.

Nothing was said about the terms of the deal. Since Google is also an investor in SpaceX, they now have an interest in two of the three large LEO satellite Internet-service projects. In addition to being paid to develop and maintain Telesat's SDN and getting a return on their SpaceX investment, they might be getting access to the data flowing through the networks or to a global backbone.

Softbank invested a billion dollars in OneWeb's satellite-Internet project for access to data. Softbank founder and CEO Masayoshi Son outlined his vision of the future in the keynote session of the 2017 SoftBank World conference. He believes the information revolution will be driven by strong, general artificial intelligence (AI), therefore the key material asset for the information age will be AI training data. His conclusion is "whoever gets the most data wins." Google uses data for AI training and for advertising.

Another intriguing possibility is that Google and Telesat might be planning to integrate their balloon and satellite networks. One can imagine Project Loon using Telesat's satellite network as a global backbone. That integration would be facilitated by their both running the same SDN software -- the same network operating system.

Whatever the motivation, this partnership provides Telesat with a strategic software asset and Google may gain access to data and a fast, global backbone.

For progress reports on the three LEO broadband projects, see OneWeb, Telesat and SpaceX.

Check this short Project Loon video:


Saturday, February 09, 2019

Fifteen dollar, electronically-steerable antennas for satellite and terrestrial connectivity

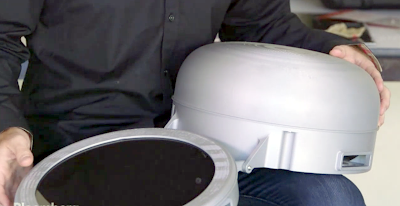

Wafer antenna, credit Greg Wyler
What will the cost and capability of these antennas be in ten or twenty years? What would be the applications and implications of ubiquitous wireless networks? You might have some short-term guesses, like smart cities, but farther out it's science fiction -- Gaia, the Noosphere, 1984?

Three companies, OneWeb, SpaceX and Telesat, plan to provide global, low-latency broadband Internet service using constellations of low-Earth orbit (LEO) satellites. They anticipate millions of $2-300 end-user ground stations and that will require a critical technology -- cheap, electronically-steered antennas that can seamlessly switch from one satellite to another as they move across the sky. Antenna development has seemed to be a sticking point, but each of these companies has made a promising announcement during the last month.

OneWeb founder Greg Wyler announced that his self-funded side project, Wafer LLC, has developed a flat, low-power phased-array antenna that could be mass produced for $15. Wyler said tests of prototypes showed 50 Mbps capacity per antenna "tile" and said multiple tiles could be combined. (I assume that combing them would cut into the number of satellites that could be visible at any one time). The prototype uses the Ku frequency band that OneWeb's first satellites will use, but Wyler said they can be redesigned for different frequencies and orbit altitudes at little change in cost.

Telesat has two test satellites in orbit and Ball Aerospace announced a successful demonstration of communication between the test satellites and Telesat's ground station in Canada. They reported quick and seamless switching between the satellites and the speed and latency needed to stream video. (I asked about the characteristics of the video, but got no comment). Ball also says they will be able to mass produce their antennas. It is noteworthy that Telesat has said they would concentrate on the maritime, aviation and cellular backhaul markets until the cost of end-user antennas came down. It seems to have done just that.

SpaceX also has test satellites in orbit, and they report high bandwidth and 25 ms latency, but, unlike OneWeb and Telesat which are working with a number of suppliers and partners, they are vertically integrated, and are designing their own antennas. Earlier this month, SpaceX filed an application with the FCC for permission to deploy one million end-user Earth stations. The application describes their antennas as employing "advanced phased-array beam-forming and digital processing technologies to make highly efficient use of Ku-band spectrum resources by supporting highly directive, steered antenna beams that track the system’s low-Earth orbit satellites." In addition to steering the beams, they are able to vary power as a function of the angle between the ground station and satellite.

These antennas will enable Internet connectivity in homes, schools, clinics and other fixed location. They will also be found on things that move like ships and planes. If all goes well, they will be on the roofs of cars and trucks as well (Teslas first).

They will play an even larger role in terrestrial communication. Since they have no moving parts and do not require precise alignment, they will be reliable and easy to install. They will become staples of 5G mobile installation, community networks, and other do-it-yourself projects. They will be deployed in dense urban areas, rural areas, developing nations, etc. (Years ago, one of my classes managed the networking of several of the dorms on our campus -- these antennas would have made that a snap).

What will the cost and capability of these antennas be in ten or twenty years? What would be the applications and implications of ubiquitous wireless networks? You might have some short-term guesses like smart cities, but farther out it's science fiction -- Gaia, the Noosphere, 1984?

For progress reports on the three LEO broadband projects, see OneWeb, Telesat and SpaceX.

Wednesday, January 02, 2019

Simulation of OneWeb, SpaceX and Telesat's proposed global broadband constellations

Inigo del Portillo and his colleagues at MIT have run a simulation comparing OneWeb, SpaceX and Telesat's proposed low-Earth orbit Internet service constellations. The models are based on the initial FCC filings by the companies and demand and data-rate estimates by the authors. (I will mention subsequent amendments to the filings below).

The first part of the paper presents an overview of the satellites and constellations and simulations predicting the average number of satellites within line of sight at different latitudes:

Source

With 4,425 simulated satellites, SpaceX is the clear leader in all but the extreme north and south, but Telesat, with only 117 satellites, averages more visible satellites than OneWeb with 720 because their minimum elevation angle is 20 degrees while OneWeb's is 55 degrees (SpaceX's is 40 degrees).

Note that SpaceX coverage peaks around the latitude of Seattle, where their center for satellite operations is located, and many large trading and financial cities have 30 or more visible satellites:

Source

They also simulated alternative ground segment configurations. The following figures show throughput as a function of the number of ground stations and assumed optical inter-satellite link (OISL) speed:

Source

They estimated the average data rate per satellite and total system throughput (sellable capacity) for each constellation then computed the number of ground stations needed to achieve full capacity:

SpaceX OneWeb Telesat
Average data rate per satellite (Gbps) 5.36 2.17 22.74
Total system throughput (sellable capacity, Tbps) 23.70 1.56 2.66
Ground stations needed to achieve full capacity 123 71 42
Throughput with 50 ground stations (Tbps) 16.80 1.47 2.66

Note that marginal improvement diminishes as the number of ground stations increases. For example, with 50 ground stations each, the throughputs are SpaceX 16.8, OneWeb 1.47 and Telesat 2.66 Tbps.

Since SpaceX has their own launch capability, they can afford to begin at very large scale, giving them a significant capacity advantage, but Telesat has a significant lead in capacity per satellite. Putting these constellation capacities in context, Telegeography reported that global International bandwidth in 2018 was 393 Tbps, two-thirds of which has been deployed since 2014. Satellite constellations with OISLs will add to that total and provide lower latency times than international terrestrial cables.

As mentioned above, there have been some changes in plans since the FCC filings upon which these simulations were based. OneWeb has reduced the number of satellites in their constellation to 600 and eliminated ISOLs and SpaceX has lowered the altitude of their constellation from 1,100 to 550 km and cut the number of ISOLs per satellite from 5 to 4. (SpaceX was also authorized to use V-band spectrum, but that may be for their planned VLEO constellation).

I asked del Portillo whether they had rerun the simulations using the revised plans, and he said they had not, but he did not think that the numbers for total throughput and number of ground stations would vary a lot for SpaceX and he expected the total system throughput would decrease slightly for OneWeb because of the reduced number of satellites. He also expressed concern about OneWeb being able to provide continuous coverage near the equator where there might be coverage gaps or lower data-rates. (Note that the simulation focused on end-user and backhaul demand, not marine and in-flight connectivity which are priority markets for OneWeb).

SpaceX appears to have financing in place to cover their initial launches and achieve high capacity early and Telesat is making a much smaller initial investment, but should be able to scale up as demand increases. Based on this simulation and problems they have encountered with their Russian partners, OneWeb may be falling behind.

I've summarized some of the results of these simulations, but you should read the paper for details on the model structure, assumptions and a discussion of technical challenges. You can also check out this slide presentation on the paper. I also recommend an earlier paper and accompanying videos on a simulation that predicts routing redundancy and latency with SpaceX's planned broadband constellation.

Wednesday, December 26, 2018

Low-Earth orbit (LEO) satellite internet service developments for 2018

At the end of 2017, I posted a review of important LEO-satellite Internet service developments. I've been updating those posts during the year and have also added the following new posts this year:

OneWeb's offer to sell a share of their satellite Internet service to Russia. (December 2018).

OneWeb has a Russian contract to launch Internet-service satellites and a marketing partnership with a Russian company. When the Russian government expressed concern about security and US sanctions, OneWeb made concessions. It was reported that OneWeb had offered to sell 12.5% of the company to Russia, giving them a board seat and access to technical information, but OneWeb denied the report. Given Russia's accelerated investment in their global satellite navigation system, history of hacking the US Global Positioning System and using the Internet to foment social unrest and influence election results in Europe and the United States, I would be reluctant to share technical information with them.

A cool simulation of SpaceX's revised satellite broadband plan. (November 2018)

On November 15, the FCC approved a revision to the plan for Starlink, SpaceX's forthcoming broadband satellite service. The new plan reduces the number of satellites from 4,525 to 4,409 and lowers the altitude of the phase-1 satellites from 1,100 to 550 km. Mark Handley, a professor at University College London, has created videos based on simulations he ran of both the original and revised phase 1 plans. The videos and his narration provide insight into the assumptions he made in building his models and constellation design decisions and tradeoffs.

An in-depth interview of OneWeb Executive Chairman Greg Wyler. (November 2018)

In this "definitive" 2018 interview of OneWeb founder and Executive Chairman Greg Wyler, he said their initial customers will include emergency services, mobility (aviation), health centers and schools. He did not mention individual homes or the problems he has been having negotiating with the Russians or dropping inter-satellite laser links. There is a lot more -- check the interview out.

Obstacles in OneWeb's negotiations with Russia. (October 2018)

OneWeb has a contract to launch satellites on Russian-made Soyuz rockets and has formed a joint venture with Gonets, a Russian satellite operator, as a marketing partner. Recently, Russia has expressed concerns about security, drug their feet on spectrum allocation and complained about US sanctions. Subsequently, OneWeb reduced its interest in the Gonets partnership from 60 to 49 percent, giving Gonets control. This case illustrates the fact that political, security and financial negotiations may be as difficult as designing satellites and rockets for a would-be global Internet service provider.

Might CubeSats provide broadband Internet connectivity one day? (September 2018)

Cubesats are small, standardized satellites. Since they are small, they are relatively cheap to launch and standards and standard components make them relatively cheap. This post looks at the efforts of two startups working on narrowband communication applications using CubeSats. Today's CubeSats are smaller and less powerful than those planned for Internet constellations from companies like OneWeb, Telesat or SpaceX and it's hard to believe that the capability of broadband Internet-service satellites might one day fit in a CubeSat -- but think about the phone in your pocket.

SpaceX Starlink test -- good news but unanswered questions. (June 2018)

Elon Musk tweeted that the two SpaceX test satellites, TinTin A and B, are connecting at "high bandwidth" with 25 ms latency. That's good news but it leaves a lot unanswered. For example, he did not mention the speed and reliability of the phased-array handoffs between the satellites and ground terminals and he said nothing about tests of the inter-satellite laser links, which OneWeb has abandoned.

SpaceX President and COO Gwynne Shotwell on synergy among Musk companies and Starlink profit. (May 2018)

In a recent interview, SpaceX President and COO Gwynne Shotwell said that SpaceX is profitable, but she predicts that Internet service revenue will soon be much greater than that of their launch business and the Wall Street Journal agrees. She also pointed out synergies between Elon Musk's companies and said they remain on schedule to take people to Mars in 2024.


Telesat begins testing low-Earth orbit satellite Internet service
. (May 2018)

Telesat's demonstration satellite is now ready for testing with maritime connectivity provider OmniAccess, Australian ISP Optus and in-flight entertainment company Global Eagle Entertainment. They are moving quickly and their initial focus is on these specialized markets.

Elon Musk tells what to expect from the Block 5 Falcon 9 rocket. (May 2018)

On the occasion of it's first production flight, Elon Musk said this will be the last major version of the Block 9 Falcon 9 before their next rocket, the BFR. The Block 5 is designed for rapid-turnaround reusability and he expects there to be 300 or more Block 5 flights before it is retired. The rockets are designed to do 10 or more flights without refurbishment and expected to be capable of at least 100 flights before being retired.

FCC approves SpaceX Starlink's Internet-service constellation -- now there are four. (March 2018)

SpaceX, OneWeb, Telesat and Space Norway (focused on the far north) now have FCC approval to provide fixed-satellite service using constellations of LEO satellites.

O3b satellite Internet -- today and tomorrow. (March 2018)

SpaceX, OneWeb and Telesat are planning to offer Internet-service from LEO, but O3b is already providing connectivity to relatively large customers like mobile phone companies, government organizations, and cruise ship lines using a constellation of medium-Earth orbit (MEO) satellites. For example, they serve mobile phone company Digicell in Papua New Guinea and Cuban ISP ETECSA. O3b plans to add four more satellites early next year and will begin deploying their next-generation constellation, mPower, in 2021. While today's O3b satellites have 10 steerable edge-terminal beams, the mPOWER satellites will have over 4,000 steerable beams that can be switched under program control giving the initial seven-satellite constellation over 30,000 dynamically reconfigurable beams and over 10 Tbps capacity.

The current and future role of satellite Internet service in Cuba. (12 posts)

Today Cuba makes limited use of geostationary and MEO satellite connectivity, but LEO and MEO satellite constellations could play a major role in future Internet connectivity there and in other developing nations.

OneWeb's offer to sell a share of their satellite Internet service to Russia

Update: OneWeb has denied that they have offered to sell any stake in the company to the Russian Government and Reuters has now reported that Russia’s communications minister said that "the government has not discussed such a deal with OneWeb."

OneWeb confirmed that they are restructuring their existing commercial joint venture with Russian partner Gonets, to comply with certain Russian regulatory requirements. They reiterated that "the joint venture is solely for the commercialization of OneWeb’s satellite broadband services to customers in Russia" and stated that the joint venture would "not have access to OneWeb's satellite technology or related know-how."
-----

Given the context, I am not keen on OneWeb sharing technology with Russia before or after a deal is closed.

Number of global satellites (source)
OneWeb has a contract to launch Internet-service satellites on Russian-made Soyuz rockets and has a joint venture with Gonets, a Russian satellite operator, as a marketing partner in Russia. However, the Russian government has expressed concerns about security, drug their feet on spectrum allocation and complained about US sanctions. This led OneWeb to make two concessions -- they dropped inter-satellite laser links from their constellation design and they cut their interest in the Gonets joint venture from 60 to 49 percent.

Apparently, that did not satisfy the Russians. Reuters reports that according to three sources, OneWeb has offered the Russian government the option of buying a 12.5-percent stake in the company in exchange for approving its request for a frequency band.

If Russia buys a minority stake in OneWeb, it would be represented on the company’s board of directors and have access to the project’s technical documentation. One of the sources -- a Russian government official -- said the government was not satisfied with the conditions attached to the purchase -- it wanted access to the technical documentation before committing to the deal.

This offer needs to be put in context:
    Active disruption by Russia (source)
  • There are four competing global satellite navigation systems: GPS (US), Galileo (Europe), GLONASS (Russia) and Beidou (China).
  • University of New Brunswick professor Richard Langley, who has worked extensively with the Global Positioning System since the early 1980s says that "while the GLONASS service level has dropped below acceptable levels, it is now a dependable system and, with announced improvements, will be a contender in the future world of multi-GNS.
  • Russia has been accused of jamming and spoofing the GPS.
  • Russia has used the Internet to foment social unrest and influence election results in Europe and the United States.
Given this context, I am not keen on OneWeb sharing technology with Russia before or after a deal is closed.

Monday, November 26, 2018

A cool simulation of SpaceX's revised satellite broadband plan

On November 15, the FCC approved a revision to the plan for Starlink, SpaceX's forthcoming broadband satellite service. The new plan reduces the number of satellites from 4,525 to 4,409 and lowers the altitude of the phase-1 satellites from 1,100 to 550 km.

Revised broadband satellite plan (Sources 12 and 3
Mark Handley, a professor at University College London, has created videos based on simulations he ran of both the original and revised phase 1 plans. You should watch the videos, but it will help to first look over a few images from his simulation of the new plan.

Starlink phase-1 is shown below. Handley assumed a phase offset between adjacent planes that would minimize the chance of a collision. The minimum crossing distance between satellites is a little over 90 km -- an improvement over the previous plan.

Starlink phase 1

Looking up, there are several satellites in view at any one time (but fewer than there would have been with the previous 1,100 km plan):

View from the ground

Radio transmission will be used for links between the satellite constellation and the ground and laser links will be used between satellites. Handley assumed that each satellite links to the one before and after it in its plane and to the second closest in the adjacent planes in order to improve east-west routes. In his simulation of the first plan, he assumed a fifth laser linked to a satellite in the crossing plane, but that would be more difficult at this fast-moving lower altitude. It will be interesting to see how SpaceX uses the inter-satellite links.

Each satellite is linked to four others, forming a mesh network.

A simulated route between San Francisco and London is shown below. Note that latency is about half that of current, terrestrial routes. (The latency advantage of satellite routes over terrestrial is generally greater for long distances).

San Francisco-London -- twelve hops in space

Nine parallel routes between New York and London are shown below -- eight have lower latency than the current, terrestrial route.

Eight New York to London routes are faster than a terrestrial route

The following image shows all three phases -- Handley is not sure if the other two will interact with the phase 1 satellites.

Red: phase 1, white: phase 2, Blue, phase 3

Only Elon Musk knows what motivated this revision in SpaceX's Starlink plan, but we can speculate. They have had two test satellites in orbit at around 550 km altitude for some time, and that experience must have informed the decision. Musk reported that the links between the test satellites and the ground were performing well, but did not mention the laser links between satellites. Perhaps they feared difficulty with the longer laser links at 1,100 km or some other engineering problem. (Musk recently fired several managers in an effort to keep the project on schedule).

Because SpaceX and others are planning to launch thousands of new low-Earth orbit satellites, the FCC is focusing their attention on debris mitigation. The chance of a collision with the new plan is reduced since the minimum distance between satellites increases from over 40 to slightly over 90 km and.

The lower-altitude satellites may require more fuel to overcome a slight increase in atmospheric drag, but they will be easier to de-orbit when their life (around 5 years) is up, further reducing the likelihood of a collision.

Starlink's primary goal is affordable global broadband service to individuals and organizations, but Musk has also predicted that they would carry half of the global long-distance traffic. Handley's simulations predict roughly 2X latency improvement over current terrestrial cables on long routes and he points out that low-latency long-distance service will appeal to financial companies with offices in Europe, North America, and Asia. If capacity turns out to be sufficient, I imagine Starlink will also attract tier 1 ISPs and large companies like Google.

Finally, SpaceX also has approval for a constellation of 7,518 very low-Earth orbit satellites operating at altitudes from 335km to 346km. These will not be launched until SpaceX has satellite engineering, regulatory and market experience and time to assess potential cooperation/competition from 5G terrestrial networks.

I recommend watching the videos of both of Handley's simulations because the narratives are different and both are inciteful. You should also read his paper Delay is Not an Option: Low Latency Routing in Space.

Friday, November 16, 2018

An in-depth interview of OneWeb Executive Chairman Greg Wyler

OneWeb is building a large constellation of low-Earth orbit (LEO) Internet-service satellites and Via Satellite has published the "definitive 2018" interview of OneWeb founder and Executive Chairman Greg Wyler. The following are some of the quotes that caught my eye:
  • The system has been designed. The satellites have been tested. They are going through final stages of testing now before the launches begin. The satellites have actually performed better than expected in many ways, especially with their Radio Frequency (RF) performance which is really positive.
  • I think we will have customers up and running in 2020.
  • Whether [our satellites] are $500 thousand (the estimate in 2015) or $1 million is virtually irrelevant because what they are not is $50 million, and that is where it started.
  • The initial customers will be in the mobility and emergency services markets (paraphrase).
  • Aviation is a big [market] for us.
  • Why not let Sprint, DT, roam onto the plane? You can give the customers 4G/5G on the same devices they are used to using in their car, at the gate, or in other places.
  • The plane itself can become a Local-Area Network (LAN) party! I have been in aviation my whole life so this is always something I have been interested in.
  • OneWeb with its first constellation will be able to make a big impact on health centers and schools.
  • I would like to keep [the number of satellites up in five years time] below 1,500.
The tone of the interview was positive, but the early emphasis on emergency and mobile services (where they will have competion from other, relatively focused LEO satellite companies like Telesat and Leosat) makes me wonder whether their goal of eliminating the digital divide by 2027 might be slipping.

If I could have asked one question, it would have been about the objection to OneWeb that has been raised by the Russian Federal Security Service (FSB). If the FSB succeeds in stopping OneWeb in Russia, they will lose access to a potential market. Furthermore, it would jeopardize their contract for 21 launches with the Soviet space agency Roscosmos and perhaps cost and delay the project.

This has been a quick summary of a long interview -- you should check out the full interview.


Friday, October 26, 2018

Obstacles in OneWeb's negotiations with Russia

This case illustrates the fact that political, security, and financial negotiations may be as difficult as designing satellites and rockets for a would-be global Internet service provider.

OneWeb is investing billions of dollars in a constellation of low-Earth orbit (LEO) Internet-service satellites.

In 2015 they placed launch orders for 21 Russian-made Soyuz rockets.

In 2017, they formed a joint venture with Russian LEO satellite operator Gonets to develop the project in Russia. At that time, Gonets was a subsidiary of Roscosmos, the Russian State Corporation overseeing and implementing the Russian space industry. OneWeb had a 60% interest in the joint venture.

This week Reuters reported that OneWeb is relinquishing its majority stake in the venture -- Gonets intends to increase its stake to 51 percent.

I wonder why.

Speaking at a conference in Moscow, Federal Security Service (FSB) official Vladimir Sadovnikov objected to the project for security reasons. He feared that “Some of Russia’s regions would become totally dependent on a foreign satellite service” and added that Moscow had not received any conclusive evidence that OneWeb’s satellites would not be used for intelligence gathering.

(He also revealed his ignorance by apparently not understanding the difference between Iridium and OneWeb).

I wonder if the security concern is genuine -- OneWeb has decided to forgo inter-satellite links in favor of routing all traffic through a system of 40 terrestrial gateways, allowing a nation to know the path of traffic into and out of their territory. Are they concerned about the possible detection of sources of trolling and hacking?

Sadovnikov added a political dimension saying Russia favored setting up a similar network partnering with India, China and countries which he described as non-aggressive and China has pitched a 1,000 LEO satellite project to Russia.

An unnamed source at the FSB also mentioned politics, saying “OneWeb is an important project for Roscosmos and Russia’s space industry, but national security issues come first. There are many doubts regarding that project, especially because of the sanctions against us."

Spectrum is another stumbling block. OneWeb's request to receive a frequency band in Russia was refused and a source at the Ministry for Digital Development and Communications said they would be given permission after legal issues regarding the joint venture were completed. Given Russia's reputation, one can't help wondering whether the hangup has something to do with payoffs.

Another possibility is convoluted economic infighting within Russia. Gonets' Wikipedia page says it began as a Russian Federal Space Agency program, but in 1996 it was privatized and operated by Gonets SatCom, which was controlled by ISS Reshetnev. In 2017 Roscosmos acquired 80% of Gonets from ISS Reshetnev. Wikipedia is not a definitive source and I know nothing of the history of these organizations, but this sounds like it could be the kind of oligarchy-creation manipulation that occurs when state property is privatized. (The ownership of Cuban ISP Etecsa raises similar questions).

Perhaps there were management problems. Initially, launches of production satellites were planned to begin last May, then the date slipped to first quarter 2018. The current schedule calls for the launch of test satellites on February 7, 2019.

Regardless of the motivation for restructuring the OneWeb/Gonets venture, there is a mismatch in the aspirations of a global ISP and nationalistic governments. This case illustrates the fact that political, security, and financial negotiations may be as difficult as designing satellites and rockets for a would-be global ISP.

For background on OneWeb and other low-Earth orbit satellite Internet service projects, click here.

Gonets home page, 8/10/2018. It was removed earlier this week.

The Russian home page has also been removed. Last archived copy 4/10/18.

=====
Update 11/15/2018

Kommersant, a prominent Russian newspaper, reports that Russia’s Federal Security Service says OneWeb’s low-Earth orbit Internet-service constellation would pose a national security threat and wants it banned. If OneWeb service were banned in Russia it would mean the loss of a market for them and their Russian partner Gonets and would also jeopardize Russian space agency Roskosmos’ contract to launch OneWeb satellites. At the very least, that would probably delay OneWeb's plans.

The article says the issue has been raised "at the level of the President" in a Security Council meeting and a decision will be made no earlier than December. The English-language edition of Kommersant has a shortened version of this article. (I have based this note on a Google translation of the original article).

Thursday, October 11, 2018

Google -- kill Google Plus but save G+ Communities.

Last March, Google discovered a bug that exposed around 500,000 Google Plus profiles. Only static, optional profile fields like name, email address, occupation, gender, and age were exposed -- no other information like post content, Community memberships, viewing history, etc.

They discovered and immediately patched the bug last March and spent six months investigating it before going public yesterday. They say their investigation found "no evidence that any developer was aware of the bug or abusing it" and "no evidence that any profile data was misused." In spite of their assurance that no harm was done, Google stock dropped 2.6% last Thursday morning, when the news may have leaked out, and it is down about 4% for the last five days.

In the same post as they announced the bug, they announced they would "sunsetting" the consumer (free) version of Google Plus (but not the paid, enterprise version). Google or any other company has the right to discontinue an unprofitable product or service and, as they point out in their post, the "social network" portion of Google Plus was a failure, but there is more to Google Plus than social networking.

I quit reading my Google Plus feed long ago -- it was filled with spam and fake news based on my (faked) political interests, but I have found Google Plus Communities to be valuable and useful. While Google could not compete with Facebook's social networking feed, the features and interface of their Communities are superior to Facebook Groups. (Even if you like Facebook Groups, there is no way to transfer the members and history of a Google Plus Community to a Facebook Group).

Google should save Google Plus communities. There is a precedent for such a move. When it was launched, Google Plus included a service called Hangouts on Air (HoA). HoA enables video "chats" among up to ten people. That is not unique, but the chats can optionally be broadcast online and archived on YouTube. HoA was and remains a unique, valuable service that I and many others use. In 2016, Google removed HoA from Google Plus and integrated it into YouTube so it will not be affected by the elimination of Google Plus.

The decision to zap Google Plus provides a good example of the danger of dependency. There is an Internet saying -- "do what you do best and link to the rest." That makes sense and it has facilitated the rapid proliferation of Internet-based services, but it also leaves one vulnerable. The cost of using a service you depend upon may rise or one day or, like Google Plus, it may disappear.

I use HoA and Communities in my teaching and other professional work. Google saved me when they moved HoA out of Google Plus and I hope they do the same with Communities.

=====
Update 12/4/2018

Edward Morbius recently analyzed a random sample of 12,000 of the 7,974,281 Google Plus Communities. The size of the 10,358 Communities with visible membership ranged from 1-271,297 and the distribution was highly skewed -- the mean was 128.6, but the median was only 2.

Some Communities are worth saving, others are not. Communities with only one or two members are not worth saving, nor are communities with no recent activity (though they might have some archival value). Some topics should also be eliminated. For example, Morbius found many porn Communities in his sample and a Google algorithm should be able to flag and eliminate pornography. Spam users should also be detectable.

The largest Community in Morbius' sample had only 271,297 members, but there are much larger Communities. (I am a member of three Communities with over 500,000 members). Large Communities with non-spam traffic should be preserved. Small, active Communities are also valuable. For example, I create Communities for my classes. They are short-lived -- one semester -- and active relative to the number of members. They are quite useful to me and I do not know of a suitable alternative and I imagine the same is true for other finite-length projects.

Saturday, September 22, 2018

The impact of Internet-enabled gerrymandering: North Carolina

The Supreme Court sidestepped the North Carolina gerrymandering case and the 2018 congressional election will be biased there and in several other states. What is Judge Kavanaugh's position on the constitutionality of gerrymandering?

Charles and David Koch
Every ten years, after the census, states redraw the borders of their congressional districts. In most, but not all, states politicians -- the state legislature and governor -- control that process. The number of congressional districts in each state is a function of its population. For example, California, the most populous state, has 53 representatives in Congress while the seven smallest states have only one each.

Partisan gerrymandering is drawing district boundaries so as to give the controlling party in a state an unfair advantage. A gerrymandered map packs opposition party voters into one or a few districts so the controlling party has a small but safe advantage in the remaining districts. Gerrymandering is nearly as old as our country, but it was imprecise and difficult to do before the rise of the Internet. By 2010, the Democrat and Republican parties had compiled extensive voter databases, which mapping software could use to generate district maps favoring their party.

After the 2010 census, the Koch brothers and other wealthy Republican donors realized that if they controlled state governments, they could control redistricting and therefore the US House of Representatives so they increased their support of state elections and at the same time, the Democratic National Committee moved in the opposite direction -- focusing on the national election.

The Republican strategy worked. In the 2010 election cycle Democrats took five governorships from the Republicans while Republicans took 11 governorships from the Democrats and Republicans netted 721 state legislature seats, giving them control of both houses in 25 states -- up from 14 before the election.

Before and after 2010 gerrymandering (red=Republican control of both
houses, blue=Democrat, yellow=split). Nebraska is non-partisan. (Source)

The Republicans drew gerrymandered maps in key states and it paid off. In the 2012 election, 1.4 million more Americans voted for Democrats than Republicans for Congress, but Republicans won a 33-seat majority in Congress. A 2017 Brennan Center for Justice study concluded that "Republicans derive a net benefit of at least 16-17 congressional seats in the current Congress from partisan bias."

The Brennan Center uses three different tests for significant partisan bias in a state and they found consistent high bias in 8 states, four of which were found to be biased using all three of their measures.


There have been a number of court challenges in these states, most recently in North Carolina where a panel of three federal judges ruled last month that the state's congressional map is an unconstitutional partisan gerrymander that favors Republicans. It is easy to see how they reached that conclusion.

North Carolina voter registration numbers from 2010, before gerrymandering, to 2018 are shown below.

North Carolina voter registration (source)

Democrats outnumber Republicans in each year, but what about Libertarians and unaffiliated voters? If we adjust, by assuming that all of the Libertarian and half of the unaffiliated voters favor Republicans over Democrats, we get the following breakdown:

Adjusted registration percents

Before gerrymandering, there were seven North Carolina Democrats in the 111th Congress and six Republicans. That dropped to four Democrats after gerrymandering and then to three.

Note further that the Republicans have not tried to hide their bias. David Lewis, senior chair of the North Carolina House Redistricting Committee, and Robert Rucho, senior chair of the Senate Redistricting Committee, who were responsible for developing the redistricting plan, engaged a well-known Republican redistricting consultant Thomas Hofeller to draw the map.

Dr. Hofeller testified that Lewis and Rucho instructed him “to create as many districts as possible in which GOP candidates would be able to successfully compete for office” and he complied, seeking “to minimize the number of districts in which Democrats would have an opportunity to elect a Democratic candidate.” Lewis also confirmed their intent in the following television interview:

 Clip1 Clip2                                                    Representative David Lewis

Using common sense and tests like those employed by the Brennan Center, it is easy to identify gerrymandering after the fact, but harder to generate agreed-upon impartial districts when new census data is gathered. There are guidelines like having about the same number of people in each district, making districts contiguous and compact and recognizing political subdivisions like city and county boundaries, but these are not hard and fast criteria. There is also an inherent tension between the desire to avoid gerrymandering and compliance with the Voting Rights Act that prohibits racial discrimination in voting -- districts must be drawn so as to give representation to minorities.

People move around, so it is reasonable to redistrict every ten years and there is no way to get consensus on a redistricting algorithm, but it is clear that partisan politicians should not have redistricting authority. The Brennan Center study found one political party had sole control (legislature and governor) in each of the seven states with high levels of partisan bias while maps drawn by commissions, courts, and split-control state governments exhibited much lower levels of bias, and none had high levels of bias persisting across all three of the elections since 2010. You can read their recommendations here.

The North Carolina gerrymander was struck down by a Federal Court, but that was appealed to the Supreme Court. The lack of precise gerrymandering criteria led the Supreme Court to sidestep the case and send it back to North Carolina, where it was again found unfair, but there was not enough time to redraw the map before the election. The gerrymandered map will be used in the 2018 election. (The Pennsylvania State Supreme Court redrew a gerrymandered map this year).

If partisan gerrymandering persists, cases like that of North Carolina will continue to be appealed to the Supreme Court and they will eventually make a precedent-setting ruling. Today's Supreme Court is clearly politicized and a decision on gerrymandering would be more central to our democracy than rulings on important issues like DACA or abortion. What is Judge Kavanaugh's position on the constitutionality of gerrymandering?

For more on Internet-enabled gerrymandering see these posts and visit The Gerrymandering Project.
